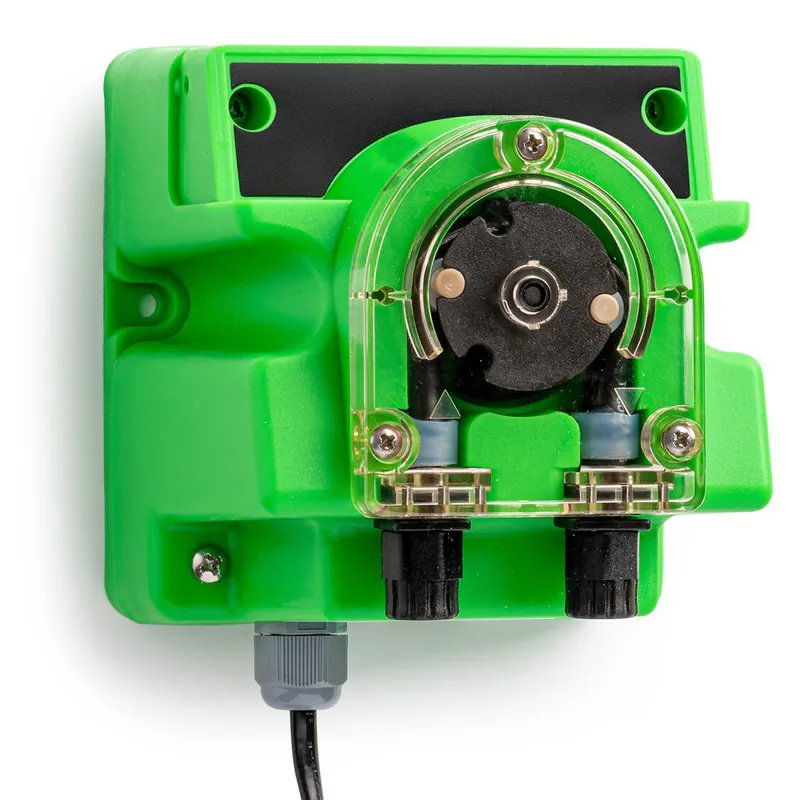

Milwaukee Instruments MP810 Peristaltic Dosing Pump for pH Controller

Precision dosing made simple.

Maintain a stable and accurate pH level effortlessly with the Milwaukee MP810 Peristaltic Dosing Pump. Designed to work seamlessly with pH controllers, this pump provides slow, consistent, and reliable chemical dosing—perfect for aquariums, hydroponics, and water treatment systems.

Whether you are dosing acid or alkaline solution, the MP810 ensures precise automation with minimal maintenance and maximum peace of mind.

⭐ Key Features

✅ Consistent & Reliable Flow Rate

Fixed dosing rate of 1.5 L/h (25 mL/min)

No calibration or complex adjustment required

✅ Durable & Chemical-Resistant Build

High-quality polypropylene (PP) housing

Santoprene peristaltic tubing for long lifespan and excellent chemical resistance

✅ Compact & Easy to Install

Comes with mounting bracket, screws, and wall plugs

Designed for vertical mounting above tank or container

✅ Complete Installation Kit Included

2 × 1.6 m PVC tubing

Pickup & discharge fittings

Filter with ceramic weight

Ready to use straight out of the box

✅ Perfect Match for pH Controller

Designed to work with Milwaukee pH controllers (e.g. MC122, MC125)

Automatically doses only when pH correction is needed

🔧 How to Use

1️⃣ Mounting

Install the bracket on a vertical wall above your aquarium or container. Slide the pump securely into place with tubing facing downward.

2️⃣ Tubing Connection

Inlet (Aspiration – arrow upward):

Attach rigid tube with ceramic-weighted filter into dosing solution.

Outlet (Impulsion – arrow downward):

Attach soft tube to discharge point or injection fitting.

3️⃣ Power On

Plug into a 240V AC socket or a pH controller.

When activated, the pump doses 0.08 cL every 2 seconds for smooth and steady dosing.

4️⃣ Automation

Let your pH controller control the pump automatically for hands-free pH stability.

🧪 Suitable Applications

✔ Saltwater & freshwater aquariums

✔ Hydroponics & greenhouse systems

✔ Water treatment systems

✔ Industrial chemical dosing

✔ Laboratory automation

✔ Swimming pool pH control

🛠️ Care & Maintenance

Always disconnect power before maintenance

Check tubing regularly for wear

Clean the intake filter to prevent clogging

Follow all safety guidelines when handling chemicals

📌 Specifications

Flow Rate: 1.5 L/h (25 mL/min)

Max Pressure: 1.5 bar / 50 ft head

Tubing Material: Santoprene

External Tube Size: 6 mm

Power Supply: 240 VAC, 60 Hz

Power Consumption: 0.42

Dimensions: 3.9 × 4.2 × 4.3 inches

Weight: 17.6 oz
